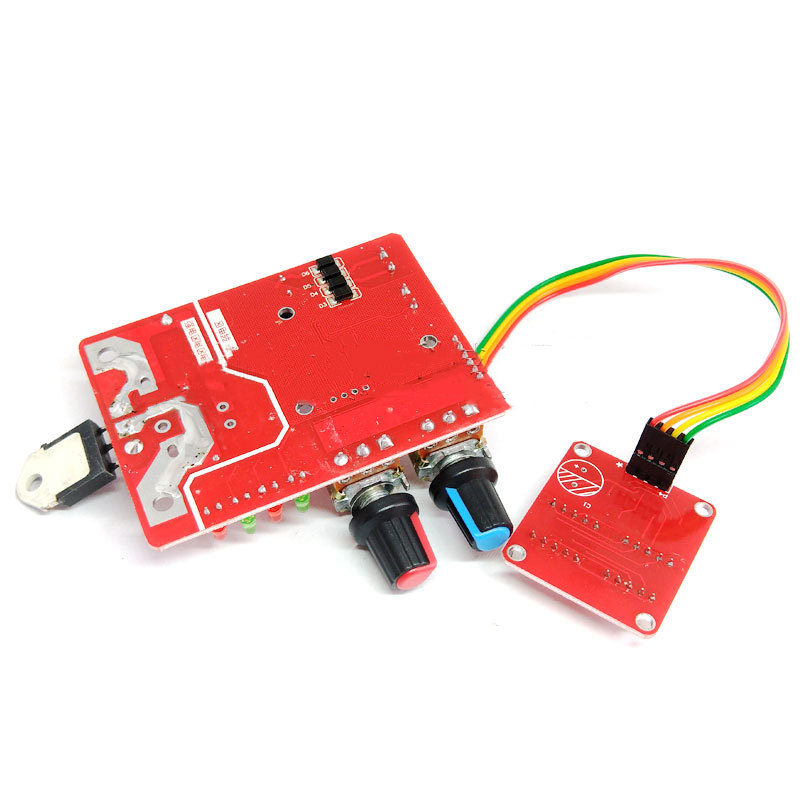

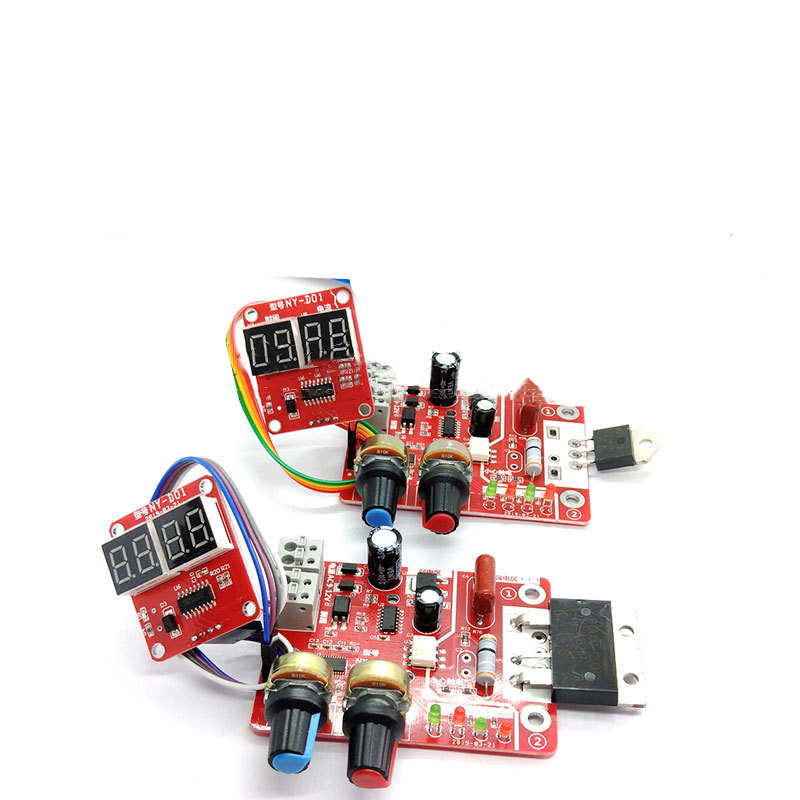

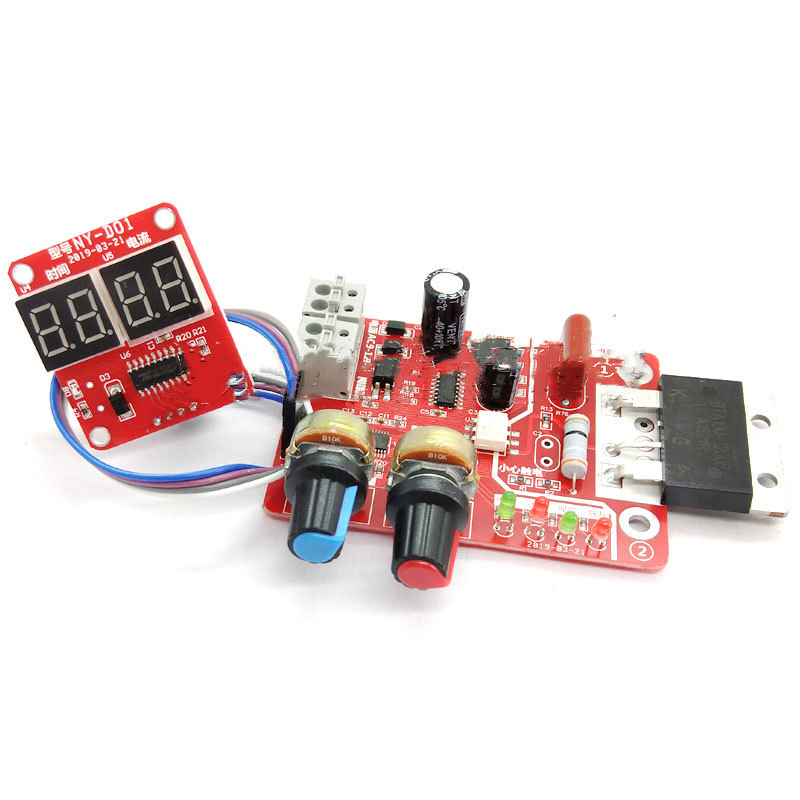

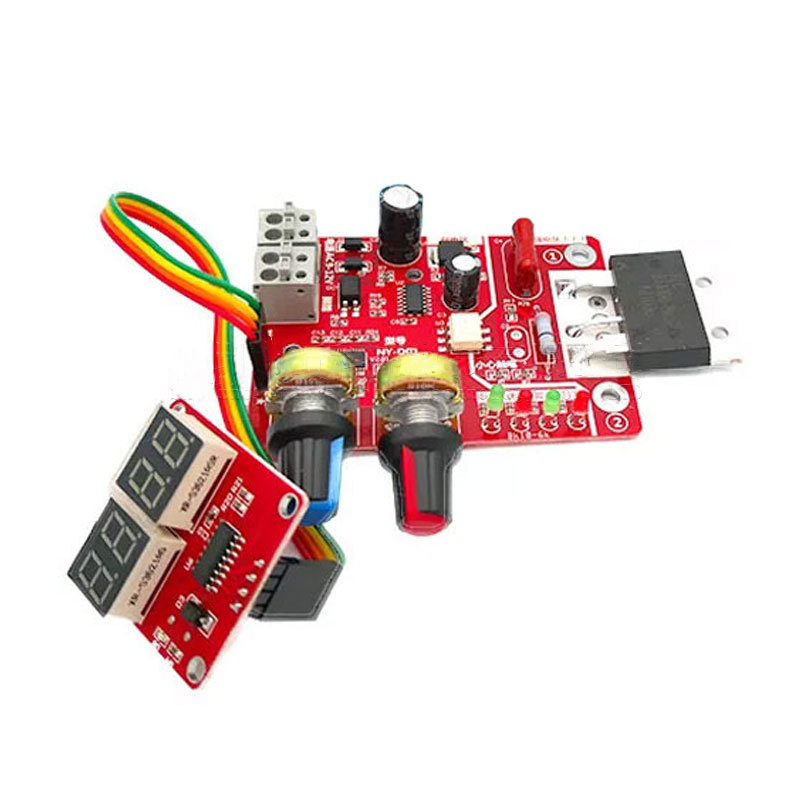

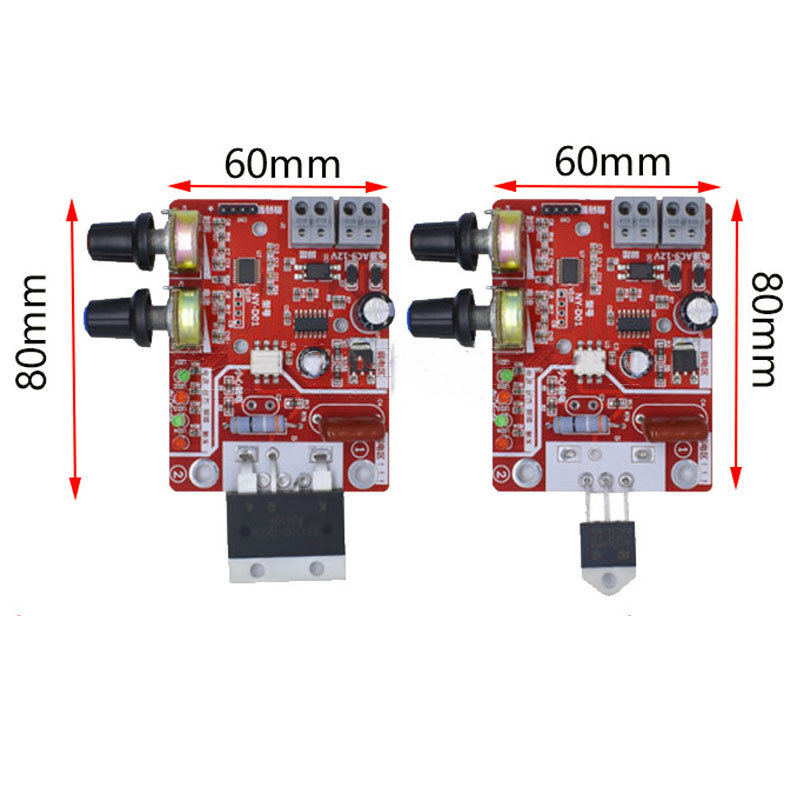

NY D01 Spot Welder Control Board

Product information:

Specifications:
NY-D01 single pulse control board 100A
220V to 9V power supply

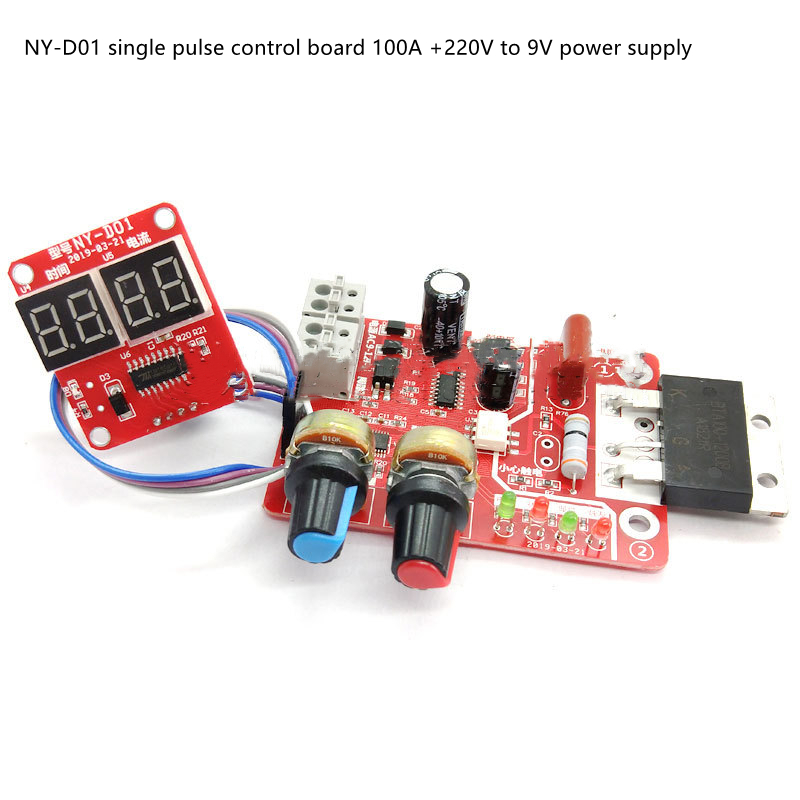

100A+220V to 9V power supply


Feature:
The control panel of the spot welder is a controller designed independently for DIY or simple resistance welding. Use the silicon phase switching principle to adjust the time and current to achieve the purpose of welding.
The main features of this controller:
1: Use the STM8 industrial center to control the microcontroller.
2: The strong and weak electricity is isolated by the optocoupler, and the operation is safe.
3: The power cable and the foot switch cable provide quick screw connection, which is more convenient and reliable.
4: High-precision single potentiometer is used for input time and current to ensure reliable and convenient input.
5: On-board power, status, feet, start indicator lights, the working status is clear at a glance.
6: Design a reliable zero-crossing detection circuit to ensure the accuracy of the thyristor phase shift.
7: The controller is compatible with 100A SCR.
8: Digital control interface, which can display the current time and current settings.
9: Time input 1-50, blocking cycle (1 cycle 20ms), input current (30-99%)

Powerful functions:
① Compatible with thyristor 41-100A
②The strong and weak electricity is isolated by optocoupler, which makes the operation safer.
③ There is no need to create a quick terminal connection. Using the raised hand push above, insert the wire.
④ Display the time and the current number of digits. Time range 1-50 cycles, one cycle 20 ms. Current range 30-99%
⑤Built-in indicator light, the working status is clear at a glance
Time Time and Current Controller
Industrial grade industrial microcontroller, stable and reliable

Packing list:

Control Board*1/Power*1/Control Board*1+Power*1
