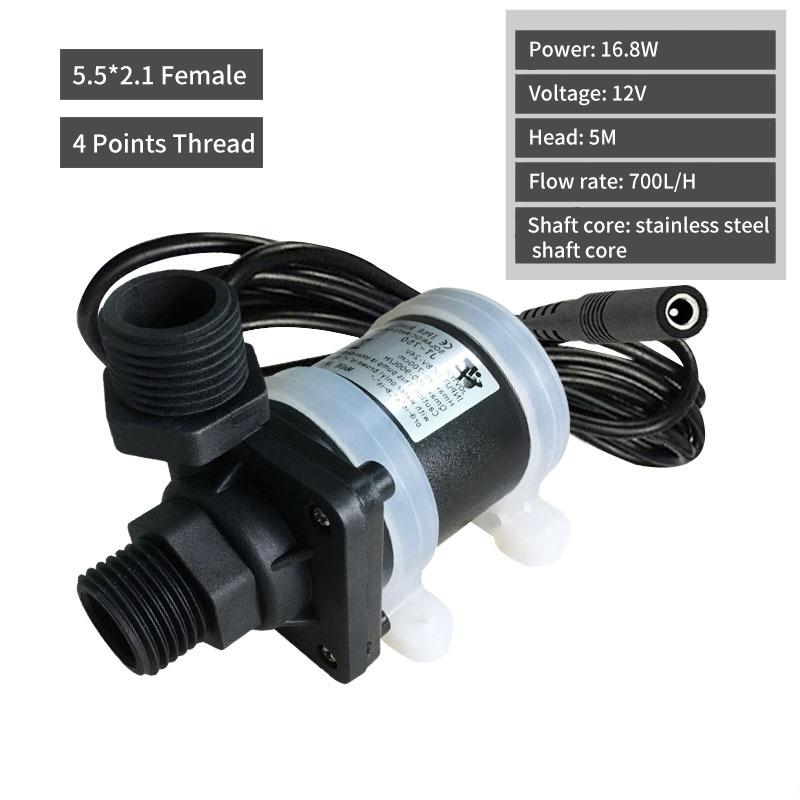

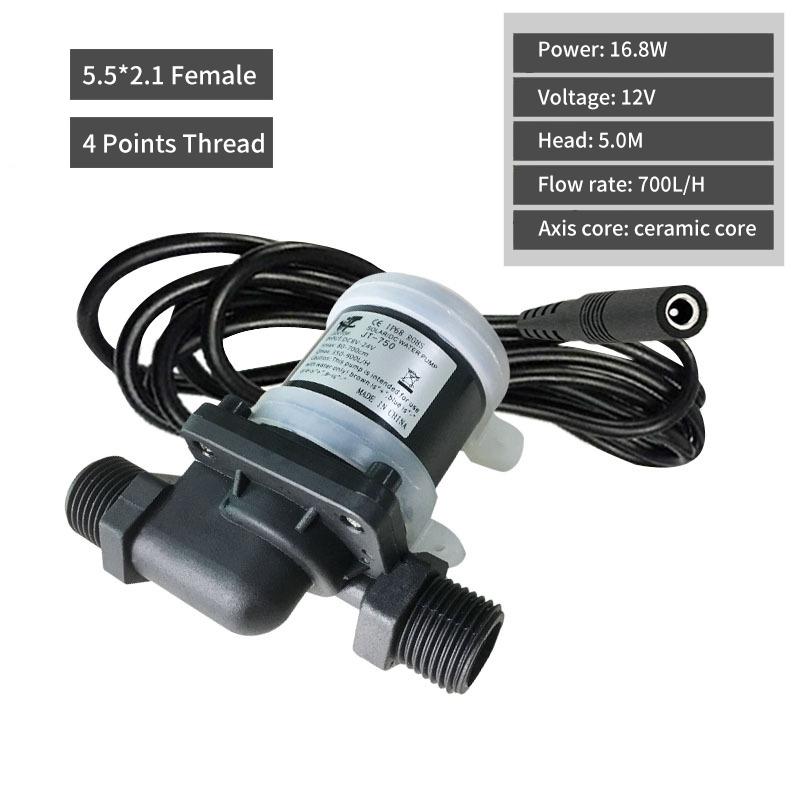

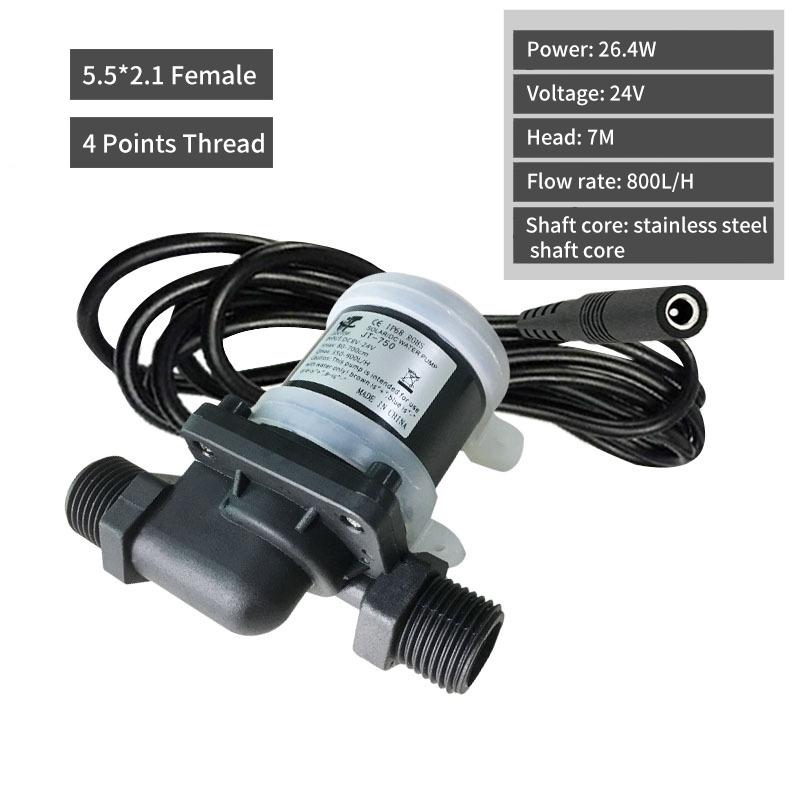

Threaded Solar Water Heater Floor Heating Booster DC Water Pump

Product information:

Order number: JT-750B4/5 D4/5
Brand: Jiatong
Item No.: JT-750B4/B5/D4/D5
Model: JT-750
Material: Engineering plastic
Performance: non-blocking
Purpose: Process pump
Drive mode: electric
Conveying medium: clean water pump
Pump shaft position: horizontal
Impeller structure: semi-open impeller
Impeller suction method: no suction
Flow: 1.2 (m3/h)
Number of impellers: 6
Head: 3-7 (m)
Suction caliber: 20/25 (mm)
Outlet diameter: 20/25 (mm)
Structural principle: jet pump
Number of stages: single stage
Weight: 0.18 (kg)
Voltage: DC12-24 (V)
Power: 0.015-0.035 (kw)

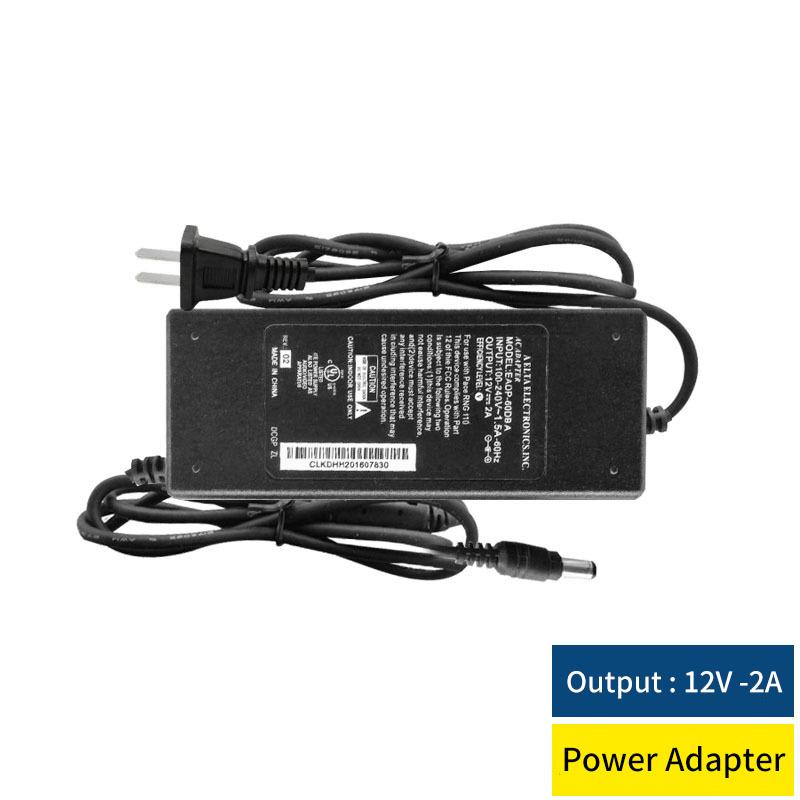

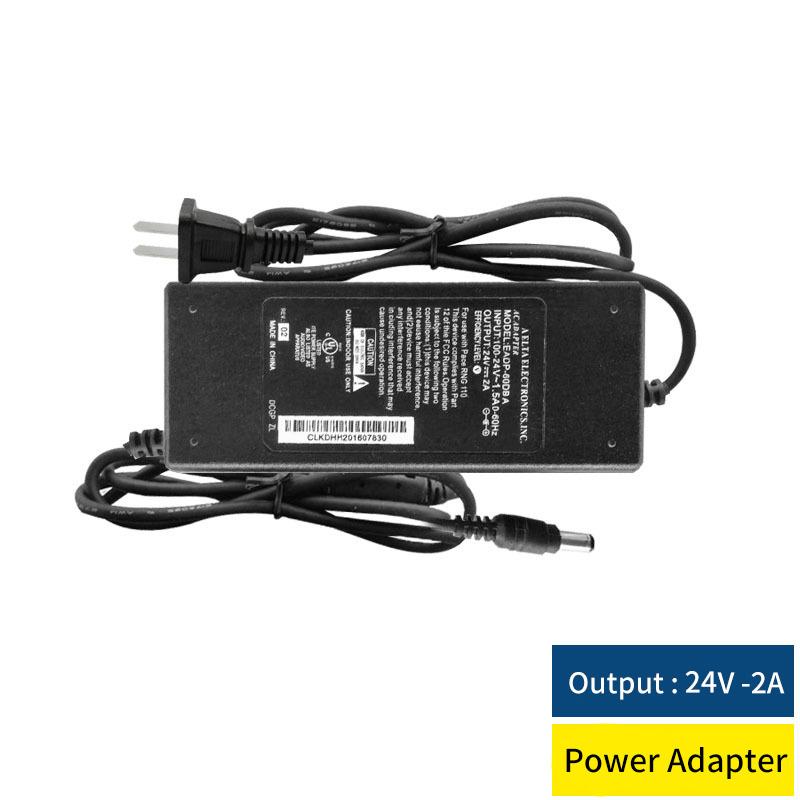

Specifications: JT-750B4-12V 4 points thread, JT-750B5-12V 5 points thread, JT-750D4-12V 4 points thread, JT-750D5-12V 5 points thread, 24V2A power supply / pump without water, JT-750B4-24V 4 points thread, JT-750B5-24V 5 points thread, JT-750D4-24V 4 points thread, JT-750D5-24V 5 points thread, 12V2A power supply (without water pump)

Packing list
DC water pump *1
