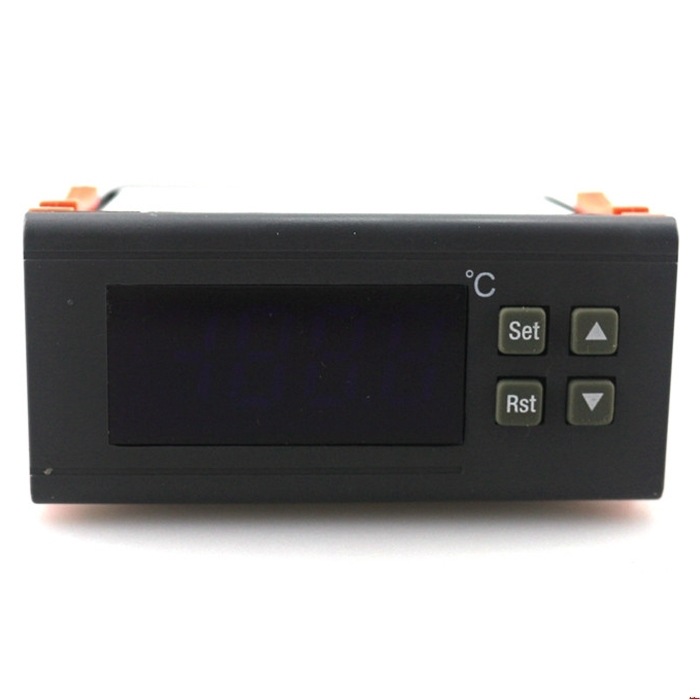

China DirectRC 114M 220V 10A 30-300 Degree Digital Temperature Control
Verified supplier· Lead time 25–45 days· 1
India wholesale price
₹3,876/ piece
Product price only · Freight, duty & GST confirmed in your wholesale quote.
Available to order
Weight: 200 g · Dims: 15×15×4 cm
Ships to India · 7–15 days (air) or 16–22 days (sea LCL)
Escrow-protected · GST invoice · Pre-shipment QC report
Product description
Features:
LED display.
Best cost-effective.
Traditional design.
Specification:
Temperature measuring range: -30~300°C
Temperature controlling range: -30~300°C
Load capacity: ≤10A/220V/50HZ
Power options: 220VAC/50HZ
Input: 1 NTC sensor
Sensor wire: 2m(standard)
Accuracy: ±1°C
Resolution: 0.1°C
Consumption: ≤3W
Cut-out size: 75 x 34.5 x 85mm
Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)
Function Menu:
| Code | Function | Setting Range | Default | Unit |
| HC | Mode | C:cool H:heat | C | / |
| D | Different | 1-80 | 5 | ℃ |
| LS | Low Temp. | -30-Setting Temp. | -30 | ℃ |
| HS | High Temp. | Setting Temp. -300 | 300 | ℃ |
| CA | Calibration | -7.0~7.0 | 0.0 | ℃ |
| PT | Delay Time | 0~7 | 1 | Min |
Package Included:
1 x Temperature Controller ( No including retail box )
1 x 2m Temperature sensor
1 x Instruction Manual
