Model NO.: ZT30
Waterproof Level: IP4X
Camera Lens: 30X Optical Zoom (180X Hybrid Zoom)
Focal Length: 4.8 ~ 149 mm ( ±5%)
Image Sensor: 1/2.7 Inch Sony CMOS 8 MP Effective Resolution
Aperture: F1.3 ~ 4.8 ( ±5%)
Camera Still Photo Resolution: 4K (3840 X 2160)
Thermal Imaging Camera Resolution: 640 X 512
Thermal Imaging Camera Zoom: 2X Digita
Wavelength Range: 8~ 14 U
Wide Angle Camera Sensor: 1/2.8 Inch Sony CMOS 4 MP Effective Resolution
Wide Angle Still Photo Resolution: 2K (2560 X 1440)
Laser Range: 5~ 1200m
Laser Pulse Frequency: 3 Hz
Transport Package: Packing
Trademark: SIYI
Origin: China
Production Capacity: 2000
Product Description

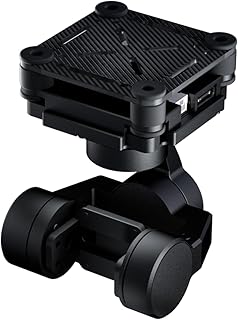

ZT30 is a four-sensor hybrid optical pod, zoom camera, thermal imaging camera, laser rangefinder, and wide-angle camera collaborate efficiently. 640 x 512 resolution thermal imaging sensor, 1200-meter range high accuracy rangefinder, 180X hybrid zoom and 30X optical zoom, 4K 1/2.7-inch Sony CMOS, 2K wide-angle camera, limitless yaw axis, upgraded quick release structure, abundant gimbal control interface compatible with both SIYI links and third-party links. High accuracy and high collaboration control algorithms ensure stable imaging and zooming ability during flight. HDR and starlight night vision extend the application scenarios to both day and night. In a word, ZT30 optical pod is a rare and good payload for multi-rotors, VTOLs, and robotics.
Product Parameters

Overall

Video Output Port Ethernet

Control Signal Input Port S.Bus
UART
Ethernet UDP / TCP
Control Signal Output Port S.Bus
High Accuracy
3 Axis Stabilization Yaw
Pitch
Roll
Working Voltage 11 ~ 25.2 V
(3S to 6S)
Power Consumption Average 9 W
Summit 20 W
Waterproof Level IP4X
Working Temperature -10 ~ 50 ºC
Dimension
(Quick Release Anti-
Vibration Claw Included)
134.5 x 140 x 201 mm
Weight
(Quick Release Anti-
Vibration Claw Included)
854 g

ZT30 Quick Release Anti-Vibration Claw

Dimension 140 x 140 x 63 mm
Weight 104 g

Gimbal

Angular Vibration Range ±0.01 °
Controllable Pitch Angle -90 ° ~ +25 °
Controllable Yaw Angle Limitless
Rotatable Roll Angle -45 ° ~ +45 °

Zoom Camera

Lens 30X Optical Zoom
(180X Hybrid Zoom)
Focal Length 4.8 ~ 149 mm ( ±5%)
Image Sensor 1/2.7 Inch Sony CMOS
8 MP effective resolution
Aperture F1.3 ~ 4.8 ( ±5%)
FOV Without Zoom: Diagonal 65.4 °, Horizontal 58.1 °
30X Optical Zoom: Diagonal 2.48 °, Horizontal 2.14 °

Video Recording Resolution 4K (3840 x 2160) @ 30 fps
2K (2560 x 1440) @ 30 fps
1080p (1920 x 1080) @ 30 fps
720p (1280 x 720) @ 30 fps
Still Photo Resolution 4K (3840 x 2160)

Thermal Imaging Camera

Thermal Sensor Uncooled VOx Microbolometer
Resolution 640 x 512
Zoom 2X Digital

Lens Focal Length: 19 mm
Aperture: F1.1
Fixed Focus
Athermalization
Wavelength Range 8 ~ 14 um
Temperature Measuring
Range High Gain: -20 ~ +150 ºC Low Gain: 0 ~ +550 ºC
Temperature Measuring Accuracy ±2 ºC (-20 ~ +150 ºC) ±3 ºC (0 ~ +550 ºC)
Temperature Measuring
Mode Full-Image Thermometric Point Thermometric
Box Thermometric

Wide Angle Camera

Image Sensor 1/2.8 Inch Sony CMOS
4 MP effective resolution
Equivalent Focal Length 20 mm

FOV Diagonal 93 ° Horizontal 84.5 °
Video Recording Resolution 2K (2560 x 1440) @ 30 fps
Still Photo Resolution 2K (2560 x 1440)

Laser Rangefinder

Range 5 ~ 1200 m
Wavelength Range 900 ~ 908 nm
Resolution 0.1 m
Ranging Accuracy ±1 m (3 ~ 100 m)
±1 + L*0.25% m, L=Length (100 ~ 600 m)
Laser Pulse Frequency 3 Hz
Max Laser Power 5 mW

General Camera Specs

Video Storage Bitrate 15 Mbps (H.265 Codec)
File Storage Format FAT32
ExFAT
Image Format JPG
Video Format MP4
Supported MicroSD Cards MicroSD Class10, Max 256 GB
Still Photography Mode Single
Metering Mode Evaluative metering

Our Advantages

Four Sensors, Powerful and Efficient

A hybrid-sensor solution born to lead the industry. Zoom camera, thermal imaging camera, laser rangefinder, and wide-angle camera collaborate efficiently to detect heat sources, while measuring distance to targets, capturing clearer pictures, and having a broad view.

High Resolution Thermal Imaging

Full-Image Thermometric / Point Thermometric / Box Thermometric

ZT30 four-sensor optical pod carries a 640 x 512 resolution thermal imaging sensor of 19 mm focal length and 30 fps frame rate. Vision is wide and far. Video is smooth and clear. Quick and accurate reactions can be taken as long as abnormal heat source is detected where temperature can be measured by touching on infrared images.

High-Accuracy Laser Rangefinder

ZT30 optical pod comes with a 1200-meter-range and 0. 1-m measuring accuracy rangefinder. Sensitive and reliable, can obtain accurate coordinates in real time in high- risk operation scenarios, helps command decision-making, and ensures safe operation space.
Professional Comprehensive UAV Imaging System

In addition to the 180x hybrid zoom (30x optical zoom) 1/2.7-inch Sony 4K image sensor camera, ZT30 also has a wide-angle camera with 2K resolution, providing an unprecedented wide view and panoramic shooting capabilities. The scenery is clear, the algorithm is fast and accurate, and the viewpoint is automatically focused, making it easy
to produce grand pictures. Silky movement, smooth zoom, distant scenery, now within reach.
*The picture files captured by ZT30 can be written with GPS location information and time attributes.
Infrared Zoom

Thermal camera supports 2x digital zoom and accurately controls more picture details.

Upgraded Quick Release and Anti-Vibration

The yaw axis of ZT30 gimbal rotates limitlessly. Hanging below VTOL drones or planes, ZT30 optical pod captures 360 degrees around. The quick release structure is upgraded with even better stabilization and more load bearing.
Industry-Level 3-Axis Stabilization Algorithms

Deeply integrate and utilize 3-axis gyroscopes, 3-axis accelerometers, PID controllers, motors, and magnetic encoders to achieve gimbal attitude stabilization control and continuously output stable high-definition video images during motion.
High-Precision FOC Motor Control Algorithms

Control the current components of the motor to control torque and magnetic field respectively, thereby achieving decoupling control of the brushless motor and greatly reducing picture jitter.
