Model NO.: 35kv 1600kva
Core: Core-type Transformer
Cooling Method: Oil-immersed Type Transformer
Winding Type: Two-winding Transformer
Certification: ISO9001
Usage: Combined Transformer, Power Transformer, Distribution Transformer
Frequency Characteristics: High Frequency
Shape of Core: U
Brand: Zhi Feng
No-Load Loss: 130W
Load Loss: 1200/1140W
No-Load Current: 1.30%
Rated Capacity: 50kVA
Reference Standards: IEC 60076
Transport Package: Wooden Box
Specification: 1CBM to 15CBM
Trademark: Zhifeng Transformer
Origin: China
HS Code: 8504210000
Production Capacity: 100 Pieces/Month
Package Size: 100.00cm * 100.00cm * 100.00cm
Package Gross Weight: 3000.000kg

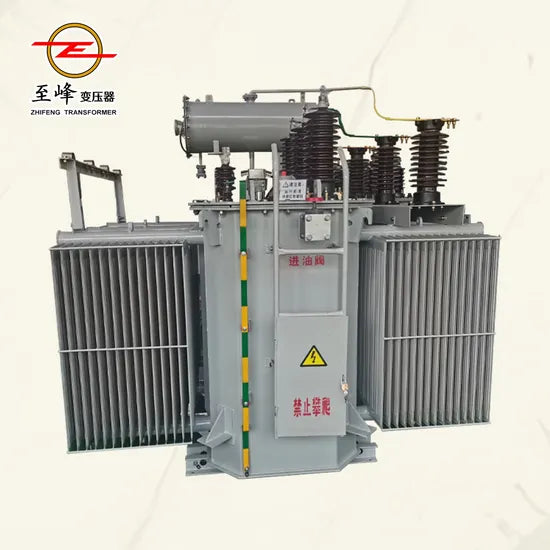

Product Name: Factory Three Phase Copper Oil Type Distribution Electric Transformer 35kv 1250kva
Category: Transformer
Keywords: Transformer, Oil-Immersed Transformer, Power Transformer, high voltage transformer, Electrical Transformer, Electronic Transformer, Transformer Price, Consumer-Electronics, Electric Transformer, Electrical-Electronics, Manufacturing-Processing-Machinery, transformer 35 kv for induction furnace, Power Inverter, Power Supply, Switching Power Supply, No Excitation Transformer, High-Frequency Transformer, High Frequency Transformer, Three-Phase Transformer, Voltage Transformer
Description: The Factory Three Phase Copper Oil Type Distribution Electric Transformer 35kv 1250kva is a premium transformer engineered for superior power distribution. Boasting a robust power capacity of 1000kva and delivering an output voltage of 33kv, this transformer is ideal for a diverse range of industrial applications. Constructed with resilient copper materials and incorporating advanced oil-immersed technology, it ensures dependable performance. Whether for high voltage applications or induction furnace use, this transformer offers a versatile and economical solution. Rely on the excellence and reliability of this three-phase transformer for all your power supply requirements.
Oil-immersed transformer relies on: oil as its primary insulation medium and cooling agent
Cooling methods: oil-immersed self-cooling, oil-immersed air cooling, oil-immersed water cooling, and forced oil circulation
Key components: iron core, winding, fuel tank, oil pillow, breathing apparatus, explosion-proof tube (pressure relief valve), radiator, insulation sleeve, tap changer, gas relay, thermometer, and oil purifier
Rated capacity (kVA): 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, 10000, 12500, 16000, 20000, 25000, 31500
High pressure (kV): 35, 35~38.5
High pressure tap range (%): ±5%, ±2×2.5%
Low pressure (kV): 3.15, 6.3, 10.5, 3.3, 6.6, 11
Vector group symbol: Yd11
No-load loss (W) for 630kVA: 830
Load loss (W) for 630kVA: 7870
No-load current (%) for 630kVA: 1.10
Short circuit impedance (%) for 630kVA: 6.5
No-load loss (W) for 800kVA: 980
Load loss (W) for 800kVA: 9410
No-load current (%) for 800kVA: 1.00
Short circuit impedance (%) for 800kVA: 6.5
No-load loss (W) for 1000kVA: 1150
Load loss (W) for 1000kVA: 11540
No-load current (%) for 1000kVA: 1.00
Short circuit impedance (%) for 1000kVA: 6.5
No-load loss (W) for 1250kVA: 1410
Load loss (W) for 1250kVA: 13940
No-load current (%) for 1250kVA: 0.90
Short circuit impedance (%) for 1250kVA: 6.5
No-load loss (W) for 1600kVA: 1700
Load loss (W) for 1600kVA: 16670
No-load current (%) for 1600kVA: 0.80
Short circuit impedance (%) for 1600kVA: 6.5
No-load loss (W) for 2000kVA: 2180
Load loss (W) for 2000kVA: 18380
No-load current (%) for 2000kVA: 0.70
Short circuit impedance (%) for 2000kVA: 6.5
No-load loss (W) for 2500kVA: 2560
Load loss (W) for 2500kVA: 19670
No-load current (%) for 2500kVA: 0.60
Short circuit impedance (%) for 2500kVA: 6.5
No-load loss (W) for 3150kVA: 3040
Load loss (W) for 3150kVA: 23090
No-load current (%) for 3150kVA: 0.56
Short circuit impedance (%) for 3150kVA: 7.0
No-load loss (W) for 4000kVA: 3620
Load loss (W) for 4000kVA: 27360
No-load current (%) for 4000kVA: 0.56
Short circuit impedance (%) for 4000kVA: 7.0
No-load loss (W) for 5000kVA: 4320
Load loss (W) for 5000kVA: 31380
No-load current (%) for 5000kVA: 0.48
Short circuit impedance (%) for 5000kVA: 7.0
No-load loss (W) for 6300kVA: 5250
Load loss (W) for 6300kVA: 35060
No-load current (%) for 6300kVA: 0.48
Short circuit impedance (%) for 6300kVA: 70
No-load loss (W) for 8000kVA: 7200
Load loss (W) for 8000kVA: 38480
No-load current (%) for 8000kVA: 0.42
Short circuit impedance (%) for 8000kVA: 7.5
No-load loss (W) for 10000kVA: 8700
Load loss (W) for 10000kVA: 45320
No-load current (%) for 10000kVA: 0.42
Short circuit impedance (%) for 10000kVA: 7.5
No-load loss (W) for 12500kVA: 10080
Load loss (W) for 12500kVA: 53870
No-load current (%) for 12500kVA: 0.40
Short circuit impedance (%) for 12500kVA: 8.0
No-load loss (W) for 16000kVA: 12160
Load loss (W) for 16000kVA: 65840
No-load current (%) for 16000kVA: 0.40
Short circuit impedance (%) for 16000kVA: 8.0
No-load loss (W) for 20000kVA: 14400
Load loss (W) for 20000kVA: 79520
No-load current (%) for 20000kVA: 0.40
Short circuit impedance (%) for 20000kVA: 8.0
No-load loss (W) for 25000kVA: 17020
Load loss (W) for 25000kVA: 94050
No-load current (%) for 25000kVA: 0.32
Short circuit impedance (%) for 25000kVA: 8.0
No-load loss (W) for 31500kVA: 20220
Load loss (W) for 31500kVA: 112860
No-load current (%) for 31500kVA: 0.32
Short circuit impedance (%) for 31500kVA: 8.0
Product Characteristics: excel in design, significant improvements in material, structure, and technology, high and low pressure clamps crafted from steel strip or upper beam and side beam, robust frame structure to augment the damping force of the iron core and its resistance to transportation, strong short-circuit resistance, aesthetic appeal, reliable operation, low loss, minimal noise, meets advanced international standards
Application Scenario: efficiently convert high and low voltages, ensuring seamless power transmission over extensive distances, expertly regulate voltage and provide isolation and coupling functionalities, perfectly suited for power plants, substations, and a wide array of large-scale industrial and civil infrastructures
Company Name: Shandong Zhifeng Transformer Co., Ltd.
Company Location: North Rainbow Industrial Park on East Second Ring Road, Linqing City, Shandong Province
Company Area: 45,000 square meters
Company integrates: production, sales, research, and development
Product range: 35KV and below oil-immersed transformers, dry transformers, special transformers, grounding transformers, arc suppression coils, reactors, box-type substations, American box transformers, and a variety of box productions
Quality System Standards: ISI9001
Design Technology: cutting-edge computer-aided integrated design technology
Advanced facilities: comprehensive performance test bench, high-performance voltage withstand equipment, program-controlled frequency conversion power supply, insulation oil chromatograph, acid value tester, insulation oil dielectric strength tester, oil dielectric loss tester, and other state-of-the-art inspection and testing devices
Premier production equipment: vacuum drying equipment, digital winding machines, and laser cutting lines
Employees: over 100
Senior engineers: 5
Highly skilled technical personnel: 18
Core values: 'sincere to the letter, brave to climb the peak'
Mission: customer satisfaction, providing high-quality, safe, energy-efficient, and eco-friendly power products, serving global electricity consumers with distinction
Transformer distinctions: exceptional quality, competitive pricing, unparalleled after-sales service
Commitment: relentless excellence, creating superior products, fostering genuine partnerships with both new and loyal customers
Specialization: development, production, and operation of transformers for over 15 years
Warranty: 12-month
Production time: 30 to 45 days
Payment terms: T/T, L/C, or negotiation
Quality control: rigorous 100% QC inspection, from raw materials to final manufacturing stage, more than 10 QC checkpoints
Stock: Generally, no (custom-manufactured)
Information needed for custom transformer: detailed technical drawings and specification documents or comprehensive technical specifications as outlined under 'Quote and Order Required Information'
Catalogue and price list: available on official website, contact directly for additional information
