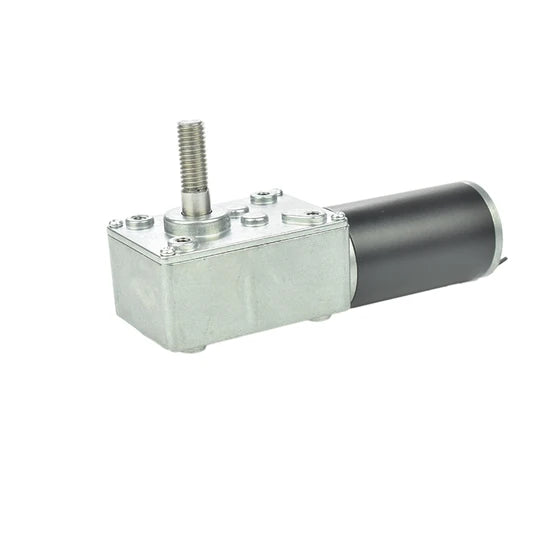

{"id":9399439098133,"title":"DC Worm Geared Motor High Torque Electric 4632-370 Worm Gear Motor","handle":"dc-worm-geared-motor-high-torque-electric-4632-370-worm-gear-motor","description":"

Model NO.: 4632-370
Excitation Mode: Excited
Function: Driving
Casing Protection: Open Type
Number of Poles: 2
Structure and Working Principle: Brush
Type: Z2
Certification: RoHS, CE
Brand: Xinhe Motor
Motor Type: Brushless or Brush
Gears Type: Worm Gear
Voltage: 6V, 12V, 24V
Gear Ratio: 40:1 to 1000:1
Speed: 6~300rpm
Materials: Metal Gears
Power: 1~10W
Encoder: 48CPR If Needed
Gear Box Size: 46*32mm
Noise: <45dB
Life Time: More Than 1000hours
Packing: Carton Packing
Payment Term: Tt
Transport Package: Cartons
Trademark: XINHE MOTOR
Origin: China
HS Code: 8501109990
Production Capacity: 20000/Month
Model (6VDC): 4632-370-40, 4632-370-65, 4632-370-150, 4632-370-200, 4632-370-260, 4632-370-340, 4632-370-600, 4632-370-1000
No load speed (6VDC): 150 rpm, 90 rpm, 40 rpm, 30 rpm, 23 rpm, 18 rpm, 10 rpm, 6 rpm
No load current (6VDC): 100mA
Stall torque (6VDC): 6.4 kg.cm, 10 kg.cm, 24 kg.cm, 25 kg.cm
Gear ratio (6VDC): 40:1, 65:1, 150:1, 200:1, 260:1, 340:1, 600:1, 1000:1
Model (12VDC): 4632-370-40, 4632-370-65, 4632-370-150, 4632-370-200, 4632-370-260, 4632-370-340, 4632-370-600, 4632-370-1000
No load speed (12VDC): 150 rpm, 90 rpm, 40 rpm, 30 rpm, 23 rpm, 18 rpm, 10 rpm, 6 rpm
No load current (12VDC): 60mA
Stall torque (12VDC): 6.4 kg.cm, 10 kg.cm, 24 kg.cm, 25 kg.cm
Gear ratio (12VDC): 40:1, 65:1, 150:1, 200:1, 260:1, 340:1, 600:1, 1000:1
Company Name: Shenzhen Xinhe Motor Co., Ltd.
Management Systems: ISO9001:2001
