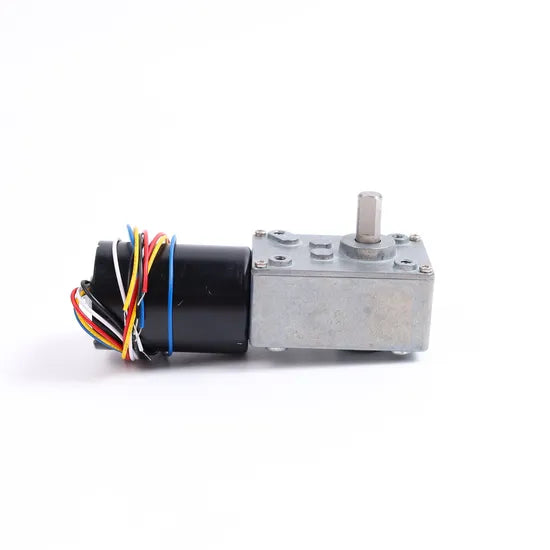

{"id":9399458464021,"title":"90 Degree 4632-370 12V DC Worm Gear Motor 370 DC Motor","handle":"90-degree-4632-370-12v-dc-worm-gear-motor-370-dc-motor","description":"

Model NO.: 4632-370
Excitation Mode: Excited
Function: Driving
Casing Protection: Open Type
Number of Poles: 2
Structure and Working Principle: Brush
Type: Z2
Certification: RoHS, CE, ISO9001:2001
Brand: Xinhe Motor
Motor Type: Brushless or Brush
Gears Type: Worm Gear
Voltage: 6V, 12V, 24V
Gear Ratio: 40:1 to 1000:1
Speed: 6~300rpm
Materials: Metal Gears
Power: 1~10W
Encoder: 48CPR If Needed
Gear Box Size: 46*32mm
Noise: <45dB
Life Time: More Than 1000hours
Packing: Carton Packing
Payment Term: Tt
Transport Package: Cartons
Trademark: XINHE MOTOR
Origin: China
HS Code: 8501109990
Production Capacity: 20000/Month
Company: Shenzhen Xinhe Motor Co., Ltd.
Ratios Applications:
1:5: Office automation, home appliances
1:10: Production automation, medical devices
1:15: Security systems, consumer electronics
1:20: Vending machines, photocopy machines
6VDC Motor Data Sheet:
4632-370-40:
No load speed: 150 rpm
No load current: 100mA
Stall torque: 6.4 kg.cm
Gear ratio: 40:1
4632-370-65:
No load speed: 90 rpm
No load current: 100mA
Stall torque: 10 kg.cm
Gear ratio: 65:1
4632-370-150:
No load speed: 40 rpm
No load current: 100mA
Stall torque: 24 kg.cm
Gear ratio: 150:1
4632-370-200:
No load speed: 30 rpm
No load current: 100mA
Stall torque: 25 kg.cm
Gear ratio: 200:1
4632-370-260:
No load speed: 23 rpm
No load current: 100mA
Stall torque: 25 kg.cm
Gear ratio: 260:1
4632-370-340:
No load speed: 18 rpm
No load current: 100mA
Stall torque: 25 kg.cm
Gear ratio: 340:1
4632-370-600:
No load speed: 10 rpm
No load current: 100mA
Stall torque: 25 kg.cm
Gear ratio: 600:1
4632-370-1000:
No load speed: 6 rpm
No load current: 100mA
Stall torque: 25 kg.cm
Gear ratio: 1000:1
12VDC Motor Data Sheet:
4632-370-40:
No load speed: 150 rpm
No load current: 60mA
Stall torque: 6.4 kg.cm
Gear ratio: 40:1
4632-370-65:
No load speed: 90 rpm
No load current: 60mA
Stall torque: 10 kg.cm
Gear ratio: 65:1
4632-370-150:
No load speed: 40 rpm
No load current: 60mA
Stall torque: 24 kg.cm
Gear ratio: 150:1
4632-370-200:
No load speed: 30 rpm
No load current: 60mA
Stall torque: 25 kg.cm
Gear ratio: 200:1
4632-370-260:
No load speed: 23 rpm
No load current: 60mA
Stall torque: 25 kg.cm
Gear ratio: 260:1
4632-370-340:
No load speed: 18 rpm
No load current: 60mA
Stall torque: 25 kg.cm
Gear ratio: 340:1
4632-370-600:
No load speed: 10 rpm
No load current: 60mA
Stall torque: 25 kg.cm
Gear ratio: 600:1
4632-370-1000:
No load speed: 6 rpm
No load current: 60mA
Stall torque: 25 kg.cm
Gear ratio: 1000:1
Guarantee: 12-month
